The WINTAO Fairway 50 is the six-passenger workhorse designed for large golf courses, tournament operations, and high-traffic resorts. A 4+2 seating configuration with flip-fold rear seat comfortably carries four forward-facing passengers plus two additional guests — or converts the rear into a generous cargo platform.
- 4+2 seating with flip-fold rear seat — six passengers or cargo space in seconds
- High-volume fleet solution — built for large courses & busy resorts
- Stable extended wheelbase — 142.5″ length for confident handling at full load
- Standard LiFePO₄ battery — 48V 105Ah, all-day range, 5–8 year life
- Upgrade path available — 5kW motor, 150Ah battery, 10″ touchscreen
Fairway 50
why this wintao cart is perfect for you
The WINTAO Fairway 50 is the six-passenger workhorse designed for large golf courses, tournament operations, and high-traffic resorts. A 4+2 seating configuration with flip-fold rear seat comfortably carries four forward-facing passengers plus two additional guests — or converts the rear into a generous cargo platform.
- 4+2 seating with flip-fold rear seat — six passengers or cargo space in seconds
- High-volume fleet solution — built for large courses & busy resorts
- Stable extended wheelbase — 142.5″ length for confident handling at full load
- Standard LiFePO₄ battery — 48V 105Ah, all-day range, 5–8 year life
- Upgrade path available — 5kW motor, 150Ah battery, 10″ touchscreen
Key Specifications at a Glance
| Seating Capacity | 4+2 |
|---|---|
| Overall Dimensions (L × W × H) | 3620 × 1200 × 1800 mm |
| Wheelbase | 2450 mm |
| Driving Range | 75–85 km |
| Top Speed | 30 km/h |
| Max. Gradient | 20% (≈11°) |
| Max. Load Capacity | 450 kg |
| Battery | Lithium Iron Phosphate 48V 105Ah |
| Motor | 4kW AC |
| Controller | 48V 350A Enpower-3528 |
| Charging Time | 4–6 Hours |
| Brakes | Mechanical Braking with Parking Brake |
| Front Suspension | MacPherson Independent Front Suspension |
| Tires | 18×8.5-8 Golf Tires |
| Container Loading (20ft / 40ft) | 3 / 16 Units (20ft / 40ft) |
Key Highlights
4+2 Flip-Fold Rear Seat
Six-passenger capacity that converts to a flat cargo deck for equipment or luggage.
High-Volume Fleet Solution
Built for large courses, tournaments, and busy resorts with high daily play volume.
Stable Extended Wheelbase
142.5″ length provides confident, composed handling even at full passenger capacity.
Standard LiFePO₄ Battery
48V 105Ah delivers all-day range with a 5–8 year service life and zero maintenance.
Low-Maintenance Design
MacPherson suspension + mechanical braking minimize service costs and downtime.
Flexible Upgrade Path
Optional 5kW motor, 150Ah extended-range battery, and 10″ touchscreen available.
Standard Features
- Standard Top
- Seat belts
- Horn
- Headlights & Brake lights

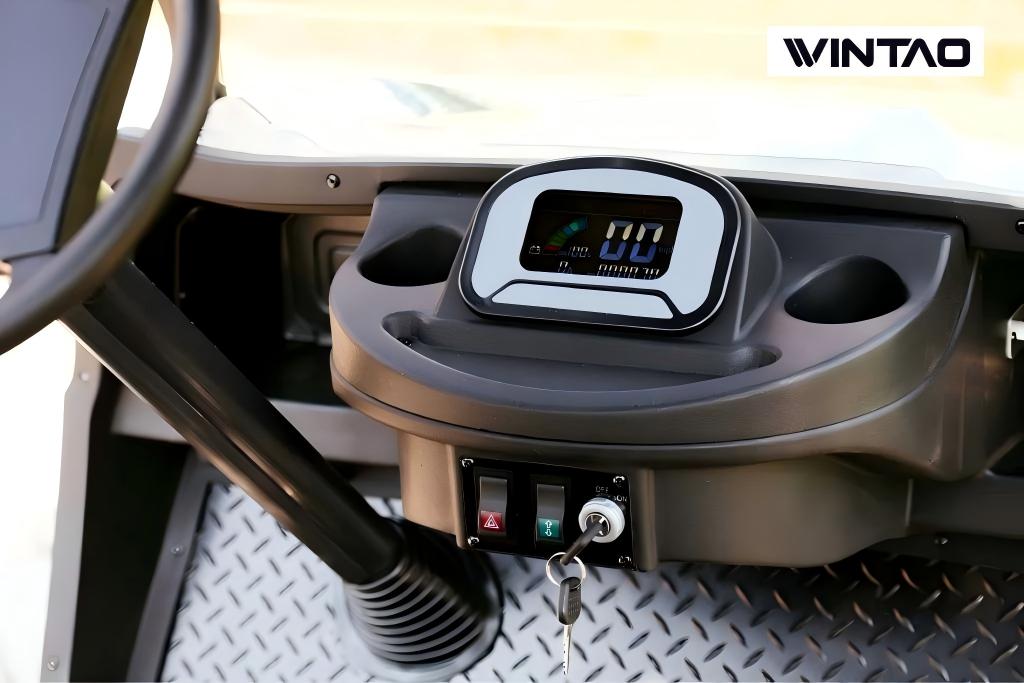

- 2″ Round Instrument Cluster
- Flip-Fold Rear Seat Kit
- On Board Charger
- Foldable Windshield
* LSV Package includes street-legal required equipment. Specifications subject to change without notice. © 2026 WINTAO EV.
